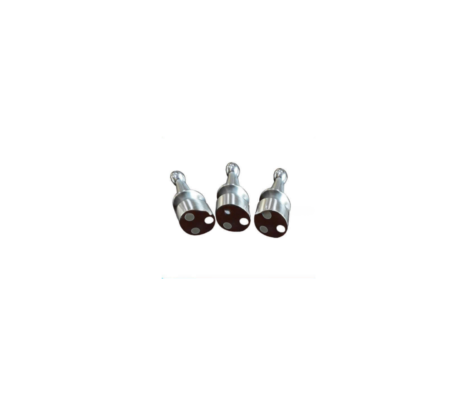

One Reference Ball



Product name: One-piece reference ball

Material: SKD11 etc.

Surface treatment: nickel plating, chrome plating, etc.

Remarks: can be customized

Features:

1. Full rust prevention

2. Good wear resistance

3. High accuracy

4. Exquisite appearance

5. Accuracy ±0.001mm



Category:

Description

[ M ] Material: 440C Stainless Steel
[ H ] Hardness: HRC56

Specifications

Part Number
CRB20
CRBP20
CRB12
Part Number T D L L1 d
Type P
CRB 12 10 6 25.73 15.723 2.03
20 20 10 43 23 3

[ ! ]Product CRB12 is shipped if the P dimension isn’t specified. [! ]For orders larger than the indicated quantity, please request a quotation.

Our international expertise is in manufacturing a one-piece tooling ball to specification.

Quantity: your needs.

Precision: highest tolerances.

Delivery: worldwide on time.

Quality: we are relentless.

History, experience, and competence: While we are the manufacturer of standard tooling balls sold by distributors, we are now in our 34th year of tackling the challenge of precision tooling balls. Callouts for tooling balls are not made casually; the engineer has a reason. We have earned the trust of hundreds of firms in commercial, military, and other government industries/aviation.

Why One-Piece?

Stability:Tooling balls take a lot of pressure; you want one solid piece of steel, not a welded assembly that can break, warp or misalign at the seam.

Concentricity: Only a one-piece construction lends itself to high tolerance and consistency in concentricity. You just can’t get this result with a welded assembly.

Please click over to our page on

custom tooling balls[custom tooling balls]

What is a tooling ball?

A difficult-to-manufacture component, tooling balls are vital to machine setups and assembly placement. Thousands of hours of alignment and set-up time are saved in the industry every day because of the precision built into the tooling ball and the smart systems that use tooling balls.

What does it take to make tooling balls?

Tooling ball manufacturing is simple but demanding: correct materials, heat treating to the necessary specifications, and precision machining/grinding to achieve exact dimensions, concentricity, and tight tolerances. These are the standards we adhere to in our tooling ball department.
